Specifications:
General specifications:
Max. V between terminals & earth: 1000V DC or 750V rms AC
Operating temperature: 0 to 40 Celsius Degree (32 Fahrenheit to 104 Fahrenheit)
Storage temperature: -10 to 50 Celsius Degree (10 Fahrenheit to 122 Fahrenheit)
Operating altitude: Max. 2000 meters (7000 ft.)
Max. diameter for conductor: Diameter 26mm
Max. displayed value: 4000 digits
Auto polarity indication: "-" for negative polarity.
Over-range indication: "0L" or "-0L"
Converter rate: 3 times/sec; Bar graph: 30 times/sec
Auto power off time: 15 minute
Power supply: 3 * 1.5V AAA battery (not included)
Package size: 23 * 10.5 * 6cm / 9.1 * 4.1 * 2.4in
Package weight: 469g / 16.5oz
Measurement specifications (accuracy):
AC Current 40A/400A ±2.0%
DC Current 40A/400A ±2.0%
DC Voltage 400mV ±1.0%
4V/40V/400V ±0.7%
1000V ±0.8%
AC Voltage 4V/40V/400V ±0.8%
750V ±1.0%
Frequency By A range (current clamp) 10Hz/1kHz/>1kHz ±1.5%
By ACV range 10Hz/1kHz/10kHz ±1.5%
>10kHz Take it only as reference
By Hz/DUTY range 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz ±0.5%
Resistance 400Ω/4kΩ/40kΩ/400kΩ/4MΩ ±0.8%
40MΩ ±1.2%
Capacitance 40nF/400nF/4uF/40uF/400uF/4000uF ±4.0%
Package including:

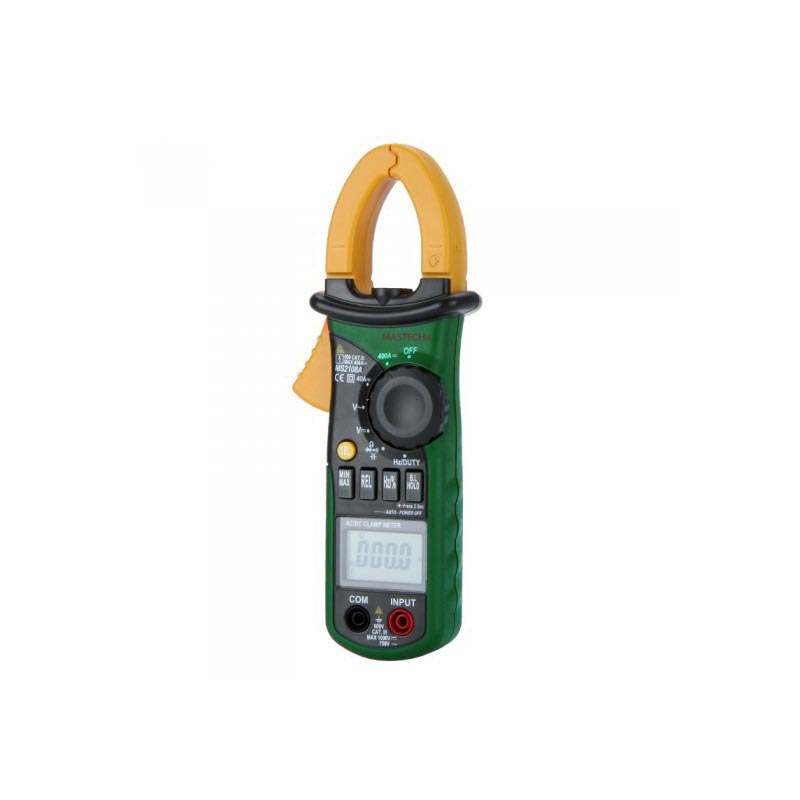

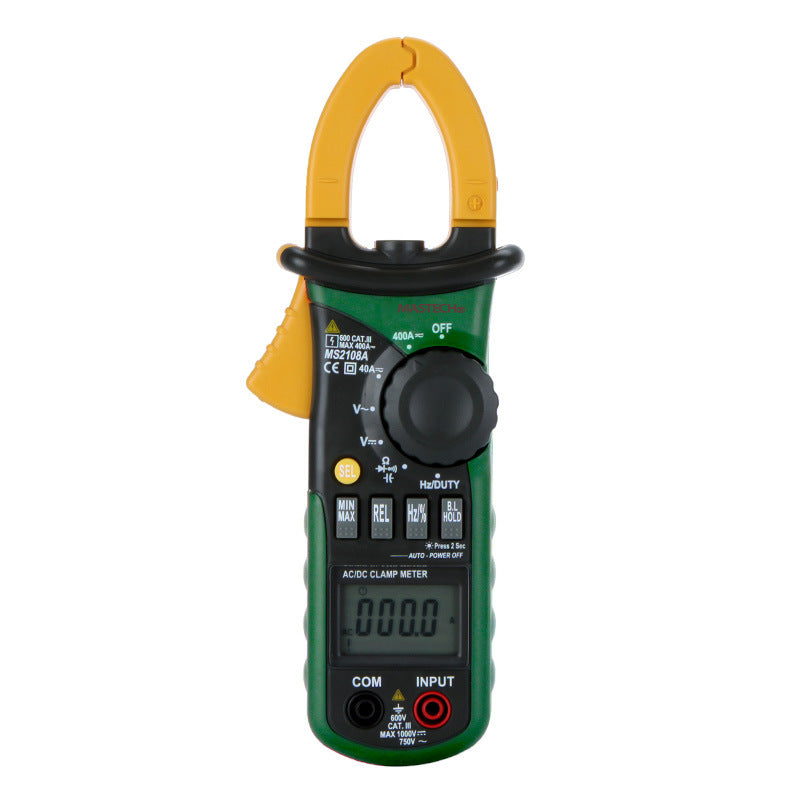

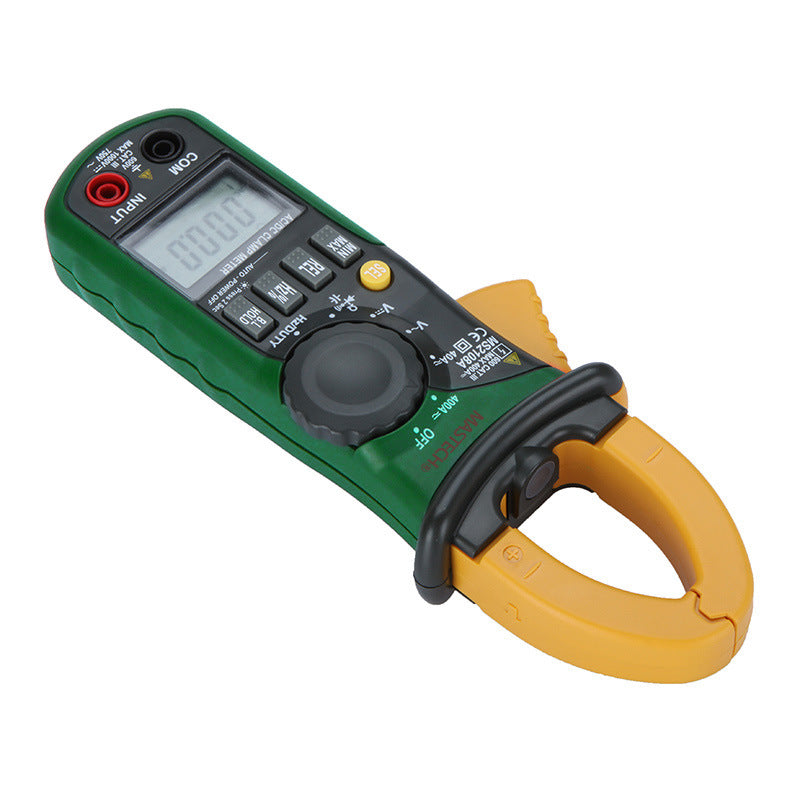

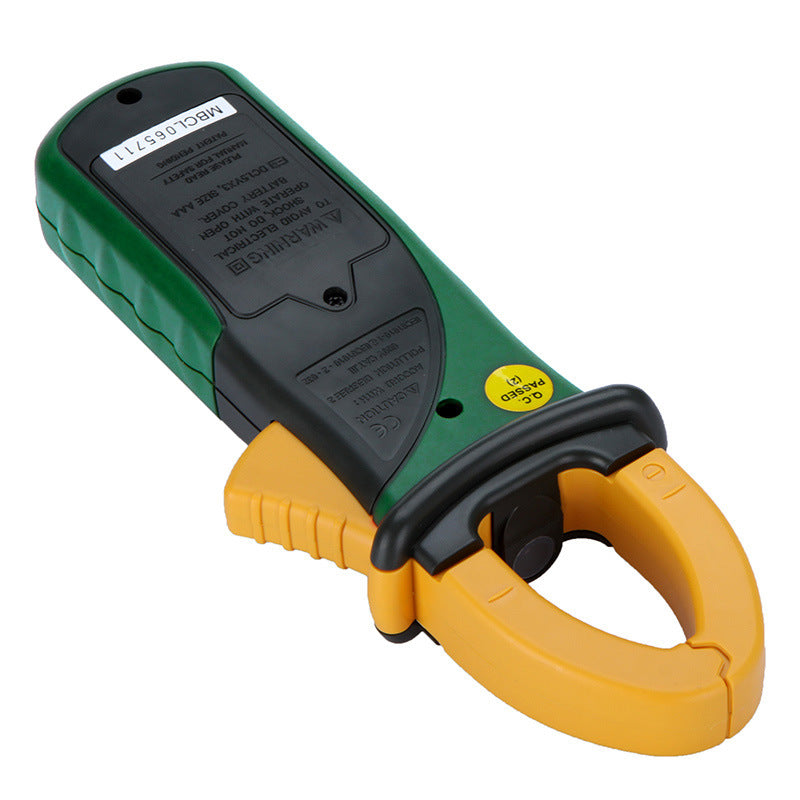

1 * Digital Multimeter
2 * Test Lead
1 * Instruction Manual
